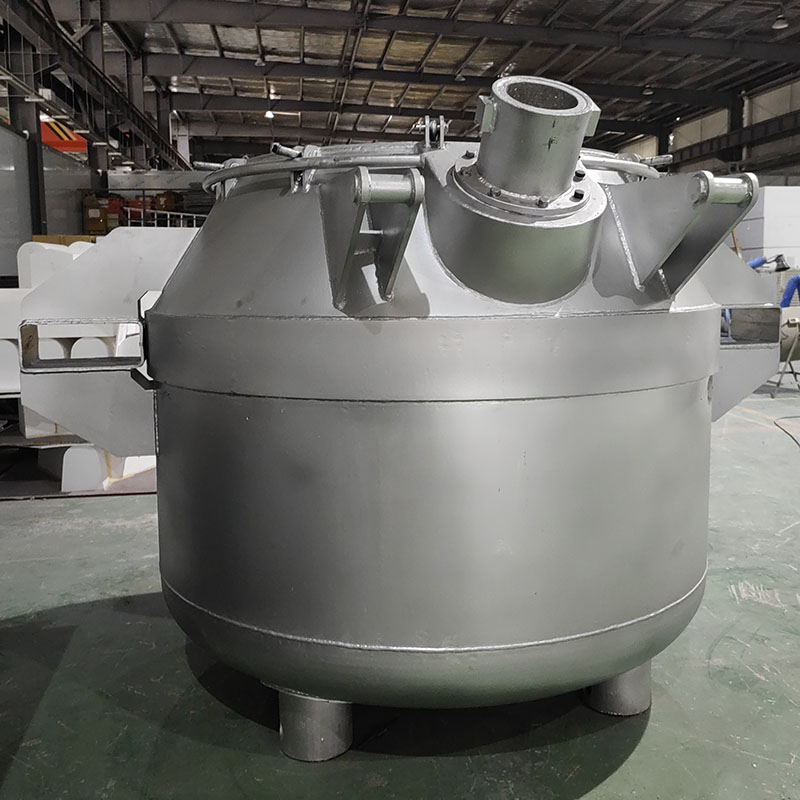

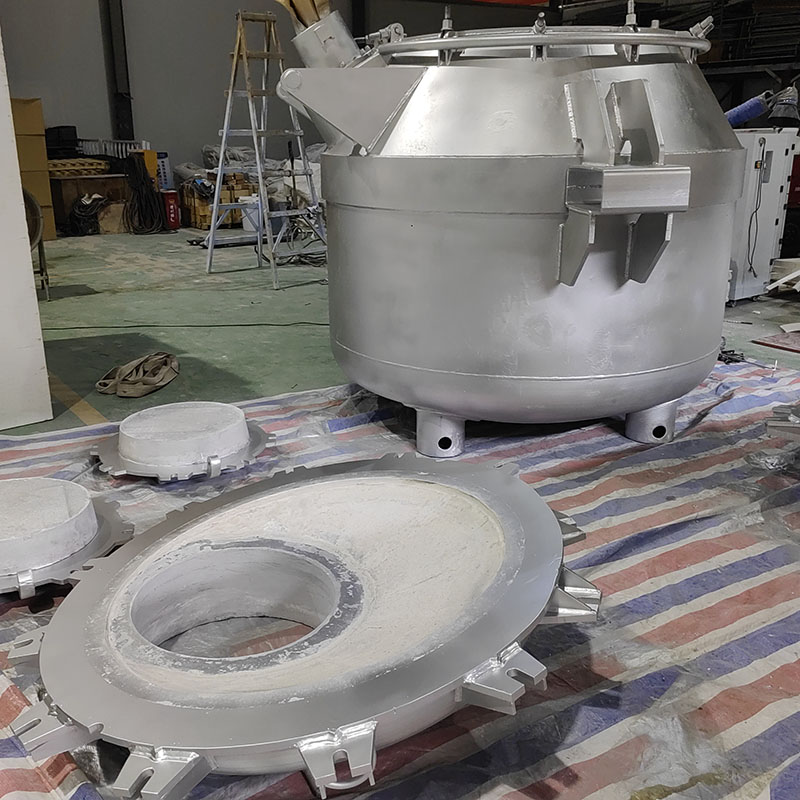

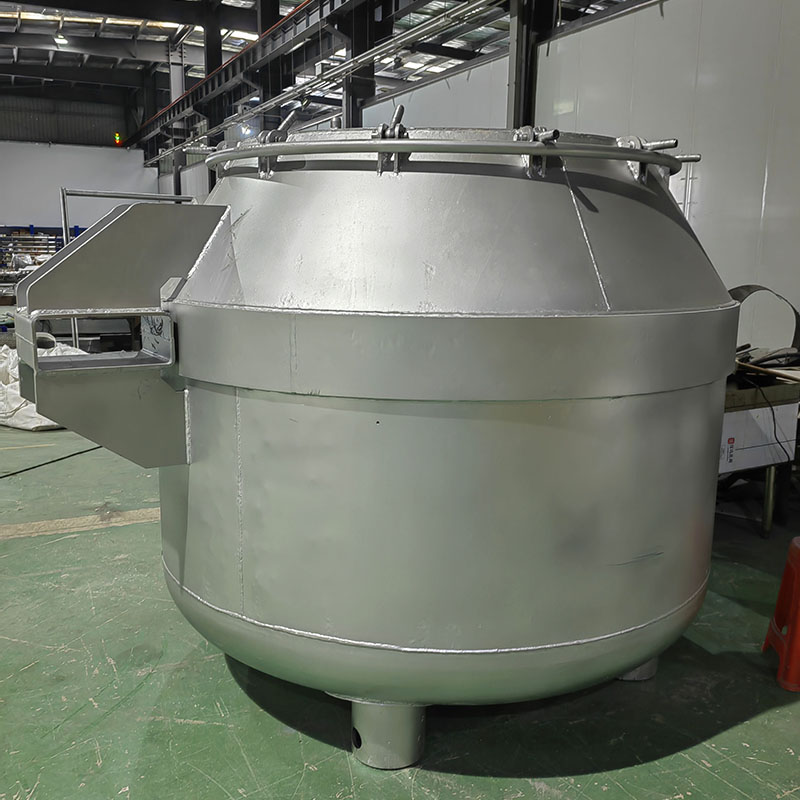

铝水运输包

铝水运输包主要用于铝水的长距离运输以及浇注用,‌具有密封性好,‌铝水降温一小时约3度左右的特点,‌很好地解决了长距离运输降温快的缺陷。‌其设计采用了茶壶嘴式的出水口,‌能起到很好的挡渣效果。‌铝水运输包的使用前,‌需要将转运包内衬温度烘烤至650-700℃,‌然后再注入铝液。‌根据熔炉设备的实际使用条件与转运距离,‌注入转运包的铝液温度一般为720-750℃。‌如果熔炉设备有出水口,‌铝液温度可设定为720℃;‌如果没有出水口,‌靠人工用勺子注入转运包,‌铝液设定温度应大于720℃。‌每次派送铝水后,‌转运包内铝水要放干,‌并确保每次派送铝液前转运包内衬的温度尽可能与铝液实际温度一致。‌如每次派送铝液时间太长,‌一定要将转运包内衬烘烤达到使用温度后,‌方可浇入铝液。



Aluminum water transport bags are mainly used for long-distance transportation and pouring of aluminum water. They have the characteristics of good sealing and aluminum water cooling of about 3 degrees per hour, which effectively solves the problem of rapid cooling during long-distance transportation. Its design adopts a teapot spout style water outlet, which can effectively block debris. Before using the aluminum water transport package, it is necessary to bake the inner lining of the package to a temperature of 650-700 , and then inject the aluminum liquid. According to the actual usage conditions and transfer distance of the furnace equipment, the temperature of the aluminum liquid injected into the transfer package is generally 720-750 . If the furnace equipment has a water outlet, the temperature of the aluminum liquid can be set to 720 ; If there is no outlet, manually inject the aluminum liquid into the transfer bag with a spoon, and the set temperature of the aluminum liquid should be greater than 720 . After each delivery of aluminum water, the aluminum water inside the transfer bag should be drained, and it should be ensured that the temperature of the inner lining of the transfer bag before each delivery of aluminum liquid is as consistent as possible with the actual temperature of the aluminum liquid. If the delivery time of aluminum liquid is too long, the inner lining of the transfer package must be baked to the operating temperature before pouring aluminum liquid.



ZSVZDVSVDG




                                            铝水包核心优点

保温性能好,铝液温降小优质耐火保温层结构,长时间转运铝液温降低,减少烧损、节约能耗。

结构坚固,安全可靠包体采用加厚钢板焊接,强度高、抗冲击、耐高温,杜绝漏铝风险,符合高温熔融金属设备安全要求。

倾转顺畅,出料干净手动 / 电动 / 液压倾转机构,倾转平稳、角度大,出铝流畅、不挂料、不残留。

密封严实,减少氧化包盖密封设计,减少铝液与空气接触,降低氧化渣产生,提高成品质量。

内衬寿命长,维护成本低采用高铝质 / 复合耐火材料,耐高温冲刷、耐腐蚀,使用寿命长,降低频繁修包成本。

适用范围广可配套熔炼炉、静置炉、铸造机使用,广泛用于铝棒、铝板、铝铸件、再生铝等生产线。

操作简单、效率高结构合理、上手快,可配合天车快速转运,大幅提升车间熔炼、浇铸效率。

参数类别关键指标通用范围 / 标准说明
容量额定装载量500kg – 6000kg(0.5–6 吨)常见规格:1t、3t、5t、10t、12t、16.5t

容积2.174m³(5T)– 3.913m³(10T)与铝液密度(~2.37t/m³)匹配
温度铝液入包温度720℃ – 780℃(铸造常用)保温工况≤750℃防凝固

保温温降≤12℃/h(优质保温层)远距离转运核心指标

内衬耐温≥1580℃(高铝质耐火材料)包壳表面温度≤180℃
结构包体材质Q235 碳素钢,壁厚≥16mm耳轴材料力学性能≥35# 钢

倾转角度53°(标准)/ 0–70°(液压)满足完全倾倒需求

内衬结构高铝砖砌筑或整体浇注寿命≥24 个月(优质浇注料)
安全密封要求包嘴、包盖密封可靠,防泄漏符合 AQ 7030-2025 标准

探伤周期每年至少 1 次横梁 / 拉杆探伤焊缝返修≤2 次
驱动倾转方式手动 / 电动 / 液压液压转注流量 0–4t/min

气源压力0.6MPa(真空抬包标配)真空度≥60kPa
